Chemical Storage FBE Bolted Tanks: Safeguarding Hazardous Liquids with Zero-Leak Technology

Product Overview

Discover how FBE-coated bolted tanks store aggressive chemicals safely for decades. Compliant with ASME, API 650, and REACH standards.

Chemical manufacturing and processing industries lose $12 billion annually due to storage tank failures, per the American Chemical Council (2023). Traditional solutions like rubber-lined or stainless steel tanks struggle with:

- Permeation Leaks: Organic solvents diffuse through polymer liners.
- Stress Corrosion Cracking (SCC): Chlorides in HCl or NaClO degrade stainless steel welds.
- Thermal Degradation: Thermal cycling (-50°C to 200°C) delaminates coatings.

FBE (Fusion-Bonded Epoxy) bolted tanks overcome these risks through non-porous molecular barriers and modular, crevice-free designs, making them the gold standard for sulfuric acid, caustic soda, and VOC storage.

Engineering Excellence: How FBE Bolted Tanks Work

a. Tank Architecture & Materials

- Panels: ASTM A516 Gr.70 carbon steel (ultimate tensile strength 70 ksi) coated with 80–200 μm FBE.
- Coating Process:
- Surface Pre*: Abrasive blast-cleaned to Sa 2.5 (ISO 8501-1).
- Electrostatic Spray: 95% transfer efficiency ensures zero holidays.
- Thermal Cure: 200°C curing forms cross-linked epoxy matrix.
- Bolting System: 316L stainless steel bolts with FFKM gaskets (Chemraz® 505 for pH 0–14).

b. Chemical Resistance Performance

Competitive Advantages Over Alternatives

Source: 2024 Chemical Storage Tank Lifecycle Report

Critical Applications Across Industries

a. Petrochemical & Refining

- Crude Oil Processing: Resists naphthenic acid corrosion (TAN ≤10).
- Amine Storage: Withstands H₂S-loaded methyldiethanolamine (MDEA).
- Case Study: A Texas refinery reduced downtime by 400 hours/year after switching to FBE tanks for HF alkylation units.

b. Pharmaceutical & Specialty Chemicals

- API Intermediate Storage: USP Class VI-certified FBE for GMP compliance.
- Solvent Recovery: Compatible with DMF, and THF.

c. Water Treatment & Mining

- HCl/H2SO4 Dosing Tanks: 3-layer FBE system for splash zone protection.
- Cyanide Leachate Storage: Zero permeation meets OSHA 1910.156.

Global Compliance & Certifications

- ASME RTP-1: Reinforced thermoplastic corrosion barriers.
- API 650 Appendix H: External floating roof tanks for VOCs.
- EU REACH/CLP: SVHC-free coatings (substances of very high concern).
- ATEX 2014/34/EU: Explosion-proof designs for flammable liquids.

Installation & Maintenance Best Practices

a. Rapid Deployment for Turnarounds

Foundation Design:
- Concrete bund walls (200mm thick, 28 N/mm² strength).
- Spill containment for 110% tank volume (EPA 40 CFR 264.195).

Assembly:

- Bolt panels using ultrasonic torque verification (±3% accuracy).

Leak Testing:

- Helium mass spectrometry (sensitivity 1×10⁻⁹ mbar·L/s).

b. Predictive Integrity Management

- Robotic Inspections:
- Magnetic flux leakage (MFL) for wall thickness mapping.
- UAV drones with LiDAR for 3D coating defect modeling.
- Coating Health Monitoring: Electrochemical impedance spectroscopy (EIS) for early degradation alerts.

Innovations in Chemical-Resistant FBE Tech

- pH-Responsive Coatings: Color-changing FBE indicates chemical permeation (patent-pending).
- Nanocomposite Epoxy: Graphene-enhanced FBE reduces permeability by 90%.
- Self-Healing Systems: Microvascular networks release epoxy precursors on crack detection (ASTM D7234).

Future-Proofing Chemical Storage with FBE Technology

In an industry where leaks equate to environmental fines and reputational ruin, FBE bolted tanks deliver zero-permeation security, regulatory confidence, and 50% lower lifecycle costs versus alternatives. From sulfuric acid to styrene monomer storage, this technology is redefining chemical safety.

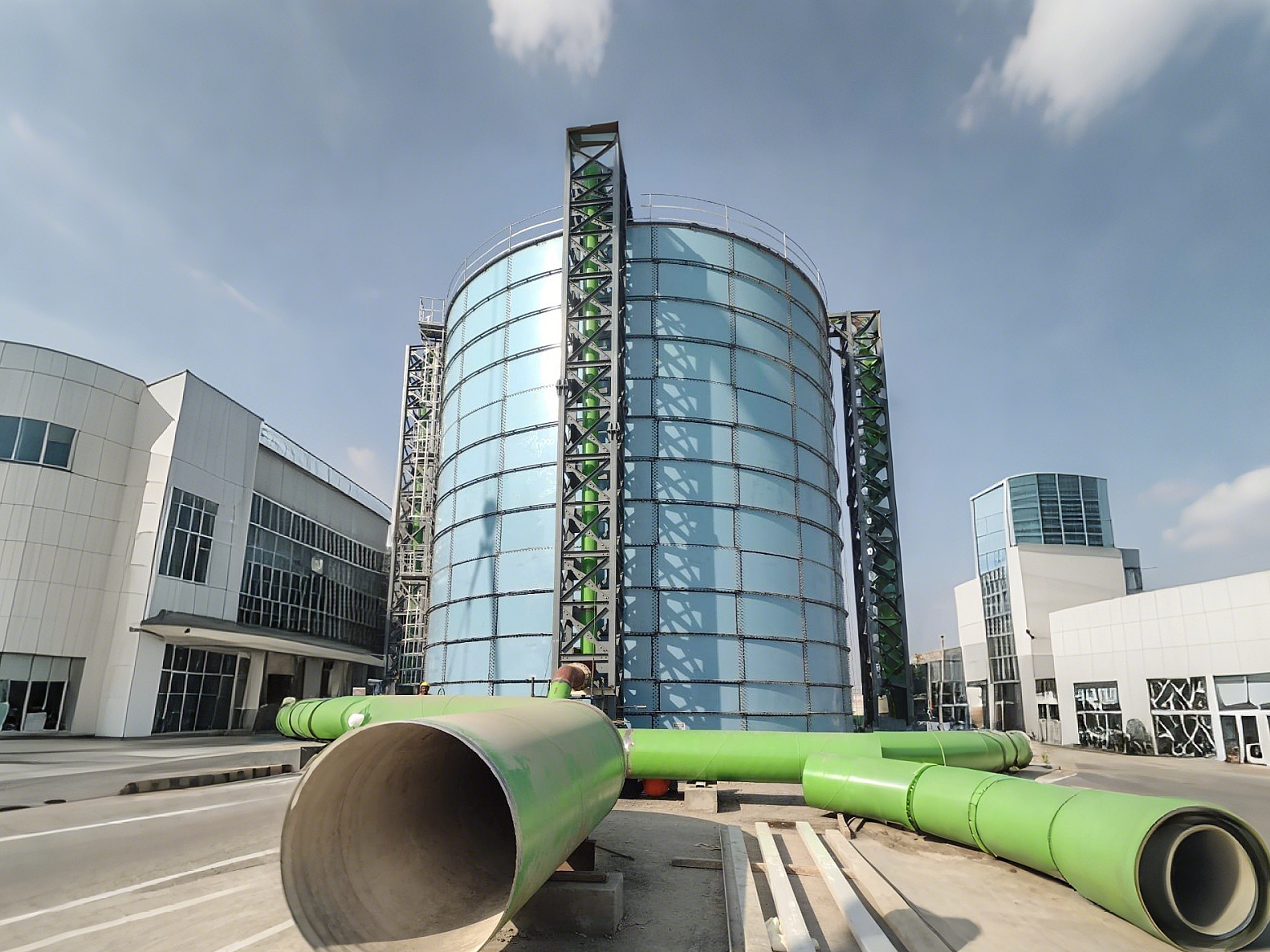

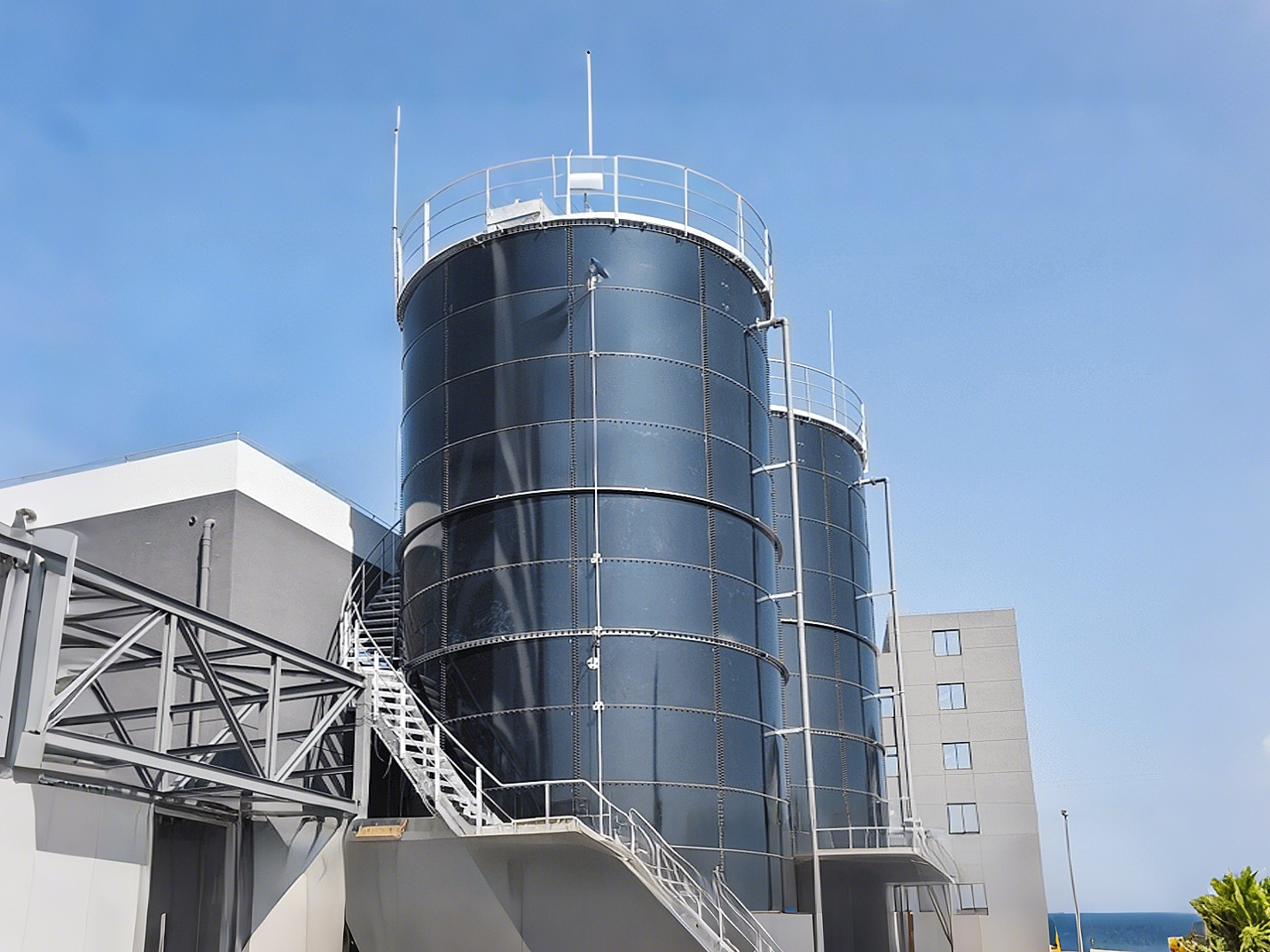

Product Show
