MONDES Lipp-SM40 Spiral Steel Silo Forming Machine
Product Description
MONDES Lipp-SM40 Spiral Steel Silo Forming Machine: The Core
Equipment for Revolutionizing Industrial Storage Solutions
In the industrial, agricultural, and environmental protection
sectors, efficient and durable storage equipment is crucial for
ensuring continuous production and sustainable resource
utilization. As a globally leading spiral steel silo forming
machine, the MONDES Lipp-SM40 (hereinafter referred to as
Lipp-SM40) has become the ideal choice for industry users to
enhance efficiency and reduce costs, thanks to its innovative
technology and wide range of application scenarios.
What is the Lipp-SM40 Spiral Steel Silo Forming Machine?
The Lipp-SM40 is an automated steel silo production equipment
developed by the German company MONDES. It uses advanced spiral
interlocking technology to quickly complete the rolling, forming,
and assembly of steel silos on-site. Its core advantages include:
- Automated production: No welding required. Seamless connections are
achieved through precise mechanical interlocking technology,
reducing manual intervention.
- Material compatibility: Supports various materials such as
stainless steel and galvanized steel, accommodating different
storage needs (e.g., liquids, gases, granular materials).
- Extra-large capacity: Can produce steel silos with a diameter of up
to 40 meters and a height exceeding 30 meters, with a maximum
single-silo capacity of 5,000 cubic meters.
- Rapid deployment: Modular design allows for on-site assembly,
shortening construction time by over 50% and significantly reducing
construction costs.
Technical highlights: Why choose Lipp-SM40?
Double seam interlocking technology (Lipp Double-Seam System)
The edges of the steel plate are curled and interlocked through
precision rollers to form a high-strength sealed structure,
completely eliminating the risk of leakage. It is suitable for
scenarios with strict sealing requirements such as storing water,
wastewater, biogas, and chemical liquids.
Corrosion-resistant and long-lasting.
The use of galvanized or high-molecular coated steel plates enables
resistance to corrosive environments such as acids, alkalis, and
salt spray, with a service life of over 30 years.
Flexible adaptability.
The equipment supports customized parameters (such as the diameter
and height of the silo, and the position of the inlet and outlet
ports), meeting various demands such as agricultural grain storage,
sewage treatment tanks, drinking water storage, and biogas storage.
Main Technical Parameters
| S/N | Parameter Category | Technical Specifications | Description |
| 1 | Model | MDS-SM40 | Standard model of spiral steel silo forming machine |
| 2 | Processing Capacity |
| 2.1 | Material Thickness | 1.5 mm ~ 4.3mm | Compatible with stainless steel, clad steel, galvanized steel,
carbon steel, etc. |
| 2.2 | Coil Width | 495mm | Standard coil width |
| 2.3 | Forming Speed | 3~5 m/min | Automatically adjusted based on material thickness and silo
diameter |
| 3 | Structural Parameters |
| 3.1 | Max. Silo Diameter | ≤40 m | Single silo capacity up to 8000 m³ |
| 3.2 | Max. Silo Height | ≤35 m | Vertical precision error ≤0.1% |
| 3.3 | Effective Width | 350mm ~ 370mm | |
| 3.4 | Spiral Seam Width | 40±5mm | Double-seam interlocking technology (Lipp Double-Seam System) |
| 4 | Material Compatibility |
| 4.1 | Compatible Materials | Clad steel, Stainless steel (304/316), galvanized steel (AZ270),
carbon steel, etc. | Selected based on storage media (liquids/gases/granular materials) |
| 4.2 | Surface Treatment | Galvanized coating (≥275g/m²), SS304/316L stainless steel liner
(optional) | Enhanced corrosion resistance |
| 5 | Power System |
| 5.1 | Drive Power | 27kW ~ 30kW | Variable-frequency motor with stepless speed control |
| 6 | Construction Efficiency |
| 6.1 | Single Silo Construction Cycle | 5~30 days | Duration depends on silo size and environmental conditions |
| 6.2 | Daily Coil Processing Length | Approx. 500m | Continuous operation mode |
| 7 | Environmental Adaptability |
| 7.1 | Operating Temperature | -20℃ ~ +50℃ | Special coatings available for extreme environments |
| 7.2 | Seismic Resistance Level | Grade 8 | Complies with international seismic standards |
| 8 | Safety Standards | CE, ISO 9001, EN 1090 | Certified by EU and international quality standards |
Application scenarios: Full coverage from agriculture to
environmental protection
Agriculture field
- Grain storage: Steel plate silos that are moisture-proof and
insect-proof can store grains for a long time, reducing losses.
- Feed processing: The sealed structure prevents feed from getting
moldy, ensuring the safety of livestock.
Environmental protection and energy
- Wastewater treatment: As an anaerobic reactor or sludge storage
tank, corrosion resistance ensures long-term stable operation.
- Biogas engineering: Safe storage of biogas and landfill gas,
supporting green energy production.
Industry and construction
- Fire water tank: High sealing performance ensures the safety of
emergency water supply.
- Building materials storage: Quickly build temporary storage
warehouses to support large-scale project construction.
Customer Cases: The Trusted Choice of Global Users
Case 1: A European bioenergy company adopted Lipp-SM40 to build 10
biogas storage tanks, each with a capacity of 3,000 cubic meters,
successfully reducing the biogas leakage rate to below 0.1%.
Case 2: After introducing this equipment, a Chinese grain group
shortened the construction period of grain silos by 60% and reduced
storage loss by 35%.
Three Reasons to Choose MONDES Lipp-SM40
- Economical and efficient: High return on investment for equipment,
maintenance costs are only 1/3 of traditional welded tanks.
- Environmentally compliant: No welding pollution throughout the
process, meeting global environmental standards.
- Technical support: MONDES provides one-stop services from design,
installation to after-sales, ensuring the smooth implementation of
projects. Conclusion
In the era of Industry 4.0, the MONDES Lipp-SM40 Spiral Steel Silo
Forming Machine, with its technological innovation and scene
adaptation capabilities, is redefining the efficiency standards of
the global storage industry. Whether it is enhancing the
utilization rate of agricultural resources or promoting the
development of green energy, Lipp-SM40 will become your reliable
partner.
Contact us immediately to obtain a customized steel silo solution and embark on a new
chapter of efficient storage!

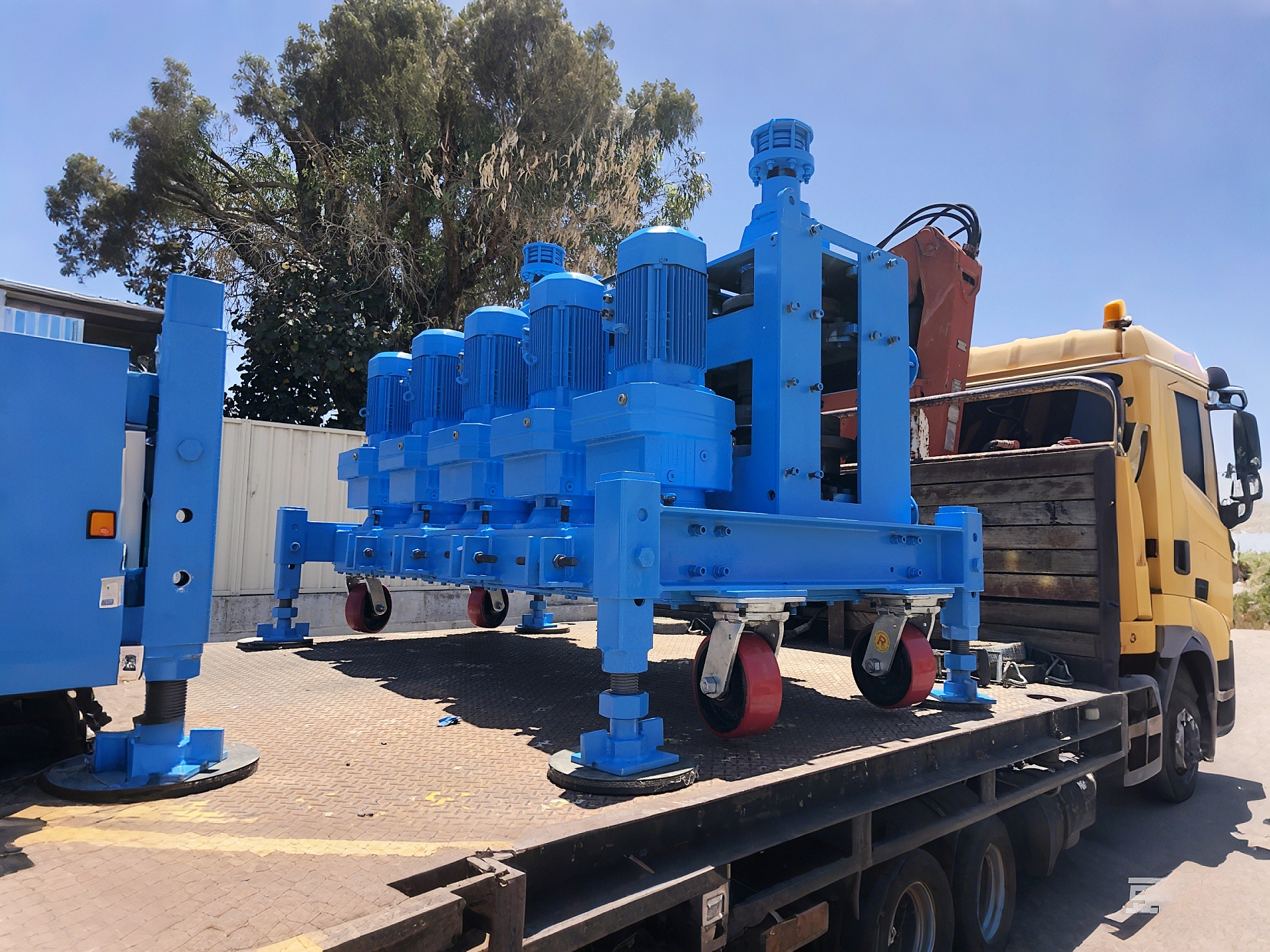

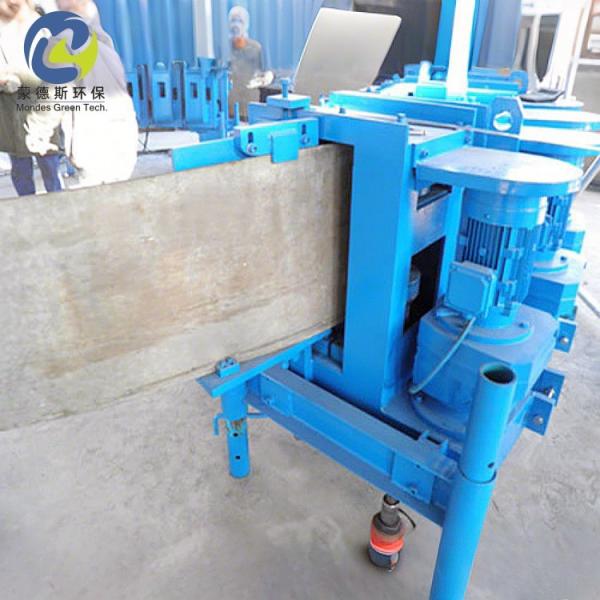

Product Show
